High integration of CAM
TransCAD provides a module at the forefront of technology. It symbolizes the strength of Computer Aided Manufacturing. The CNC code builder enables to generate a computer program capable of competing with the best available tools. By its unique and interactive design, it adapts according to the range of your tools and the thickness of the sheet to be machined. Its powerful compiler with smart functions will save you from all sorts of fatal errors in the mechanics of your machine (Hydrau/Mechanical).
The CNC code builder uses the results of your electrical calculations to deduce the suitable cover geometry, referring to different types of HV/LV bushings and other organs to be attached to the transformer. This module filters an inventory list of tools available in your store for each object to be processed, thus avoiding inappropriate user choice.

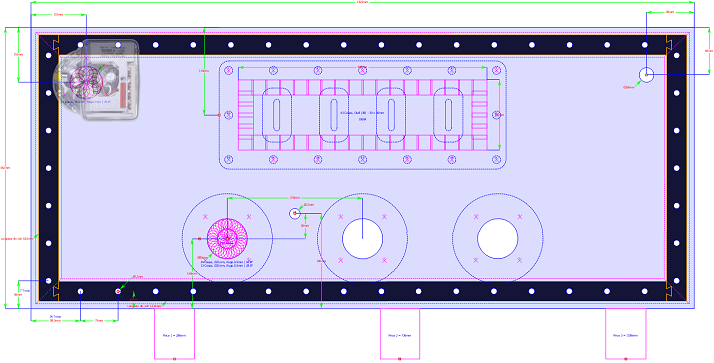

Shaping the cover
With the CNC code builder, TransCAD uses the results of your electrical calculations to deduce the suitable cover geometry, referring to different types of HV/LV bushings and other components to be attached to the transformer.
Sizing
TransCAD ensures the total sizing of the tank, taking into account the losses to be dissipated as well as geometrical and mechanical constraints.
Various other metal components of the transformer are also detailed in plans reserved for the production, through a completely new approach.
Compliance
Among the many features of this module, we note the infallible correlation of the cover realization in accordance with the standard recommendations (dimensions, inter-axis, diameters, etc…) In addition, the user has always the option to apply his own values.
The CAM module supports different technologies, such as: hydrau-mechanical, laser and plasma.
